Irreversible moisture damage often occurs without visible exterior packaging failure. You might see "popcorning" in surface-mount devices. You could find severe chemical degradation in critical pharmaceuticals. These latent defects destroy product integrity long before customers even open the box. Global supply chains expose shipments to wild temperature fluctuations. This unpredictability creates damaging condensation inside seemingly secure boxes. Visual moisture monitoring remains the only immediate, low-tech method available to combat this. It verifies internal packaging integrity right at the final receiving destination. Facility managers rely on this diagnostic tool daily. They check internal microclimates instantly upon arrival.
Evaluating the right humidity indicator card requires careful operational planning. You must balance strict regulatory compliance and precise component sensitivity. You must also integrate it seamlessly into your existing barrier systems. This guide explores exactly how you can select, deploy, and standardize these vital quality control tools effectively.
HICs provide verifiable, independent proof that desiccant systems and moisture barrier bags have maintained a safe microclimate during transit.
Selecting a cobalt free HIC is now a baseline requirement for EU REACH and RoHS compliance.
Accurate implementation relies on the "Triad Approach": pairing the correct HIC with appropriately scaled desiccants and standardized barrier bags.
Procurement evaluation must factor in standard adherence (e.g., JEDEC, MIL-SPEC), spot configuration, and baseline color-change accuracy.

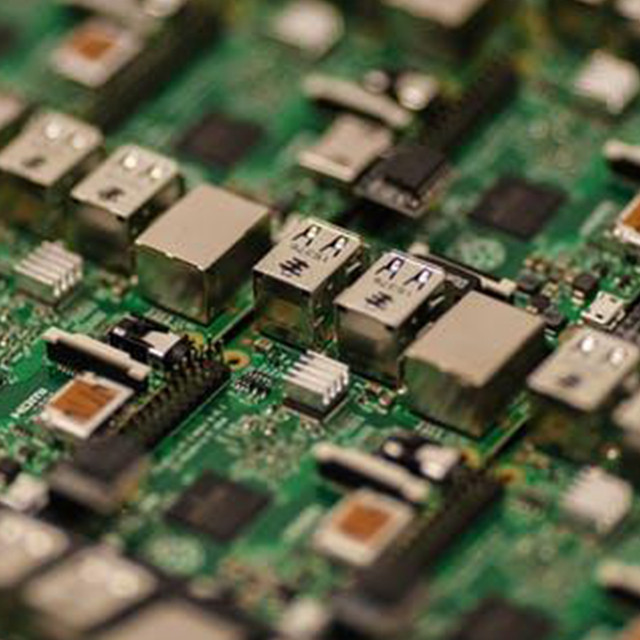

The financial impact of latent defects runs incredibly deep. Moisture damage rarely shows up on standard visual inspections. Micro-cracking during reflow soldering ruins costly surface-mount devices. During this process, circuit boards endure extreme heat. Any trapped moisture inside the component turns into high-pressure steam instantly. This steam forces the component housing apart. Engineers refer to this miniature explosion as "popcorning." It ruins the entire board completely.
Oxidation silently corrodes sensitive metal contacts over weeks of ocean transit. Compromised sterile barriers render expensive medical devices completely unusable. These defects carry massive financial weight for manufacturers. They cause severe product recalls. They delay crucial production schedules. They ultimately destroy hard-earned customer trust.
A reliable humidity monitoring card acts as your active first line of defense. It defines operational success through clear, measurable criteria.
It must provide an unambiguous color change. Most operations rely on reversible color shifts. Some highly critical applications demand irreversible indicators to prevent tampering.
It must act as a rapid pass/fail audit tool. Quality control receivers need immediate visual feedback. They cannot afford to wait for complex lab testing.
It reduces complex warranty disputes significantly. It identifies exactly when and where a moisture breach occurred.
Supply chain partners cannot easily shift blame anymore. The visual evidence proves improper handling definitively. You know immediately if the barrier bag failed during rough transit.
Spot configurations dictate how precisely you can measure internal microclimates. You must evaluate these spot levels based on exact product sensitivity. Highly sensitive electronics require low-humidity verification. You should select a 5-10-15% spot configuration for these fragile components. General industrial parts tolerate more moisture safely. They typically pair better with a 10-20-30-40% range. You must align the card with the specific risk profile.
Authoritative frameworks guide these crucial selection processes. For electronics manufacturing, JEDEC J-STD-033 outlines rigorous requirements. It mandates specific protocols for handling moisture-sensitive devices. It dictates exact baking times and exposure limits. Military applications demand even stricter oversight. The MIL-I-8835 standard governs military and aerospace packaging specifications. It ensures reliability under extreme combat conditions.
Reading accuracy remains paramount across all industry frameworks. Acceptable tolerance levels usually sit at ±5% relative humidity. This baseline assumes a standard room temperature environment. Extreme temperatures can shift these readings slightly during shipping.
Spot Configuration | Target Industry | Component Sensitivity | Applicable Standard |
|---|---|---|---|
5%, 10%, 15% | Semiconductors | Extremely High | JEDEC J-STD-033 |
10%, 20%, 30%, 40% | Aerospace & Defense | High | MIL-I-8835 |
10%, 30%, 50% | Automotive Parts | Moderate | Industry Best Practice |
20%, 40%, 60% | Bulk Dry Goods | Low | General Quality Control |
You must train receiving staff to read these spots accurately. The actual humidity level aligns with the spot currently changing color.
The global packaging industry is experiencing a massive regulatory shift. Toxic Cobalt(II) chloride is facing strict global phase-outs. Traditional blue-to-pink cards relied heavily on this toxic heavy metal. Regulators across Europe and North America now recognize its severe environmental risks. It poses significant health hazards to factory floor workers handling raw materials.
The European Union strictly enforces REACH and RoHS directives. These regulations limit harmful chemicals in electronic manufacturing and packaging. Non-compliance results in heavy fines and halted shipments at customs barriers.
Chemical manufacturers developed advanced alternative chemistries. They needed to solve this urgent compliance challenge quickly. Copper(II) chloride serves as the primary heavy-metal-free alternative today. These modern cards feature highly distinct color shifts. They typically transition from a dry brown to a wet azure blue. Some variations transition from yellow to green.
Choosing a cobalt free HIC balances workplace safety and technical performance perfectly. These innovative options provide complete REACH and RoHS compliance globally. They mitigate serious environmental liabilities without sacrificing read accuracy. Worker safety improves significantly on the active packaging line. Your company avoids costly regulatory fines. You maintain strict moisture control standards across borders easily. Transitioning requires minor retraining for visual inspection staff. The color shift is different but equally obvious.
An indicator card operates purely as a diagnostic tool. It is never a preventative measure by itself. You must evaluate it alongside Moisture Barrier Bags (MBBs) and Desiccant Packs. Industry experts call this robust approach the "Triad System." The barrier bag blocks external moisture penetration entirely. The desiccant actively absorbs any trapped internal moisture. The card simply verifies that both defensive systems worked properly.
Implementation realities often expose common operational risks. Placement error remains the most frequent mistake on packaging lines. Placing the ESD humidity indicator directly on top of the desiccant causes severe problems. The desiccant creates a highly localized dry zone around itself. The card will show a false "safe" reading. You must place the indicator near the most critical component instead.
Common mistakes in Triad System integration include:
Sealing the barrier bag too slowly, allowing ambient moisture to exhaust the desiccant.
Using improperly sized desiccants that cannot handle the total bag volume.
Failing to extract excess air from the barrier bag before final heat sealing.
Electrostatic discharge (ESD) safety adds another vital layer of complexity. Sensitive electronics require specialized protective packaging environments. The card itself must be printed on approved dissipative paper. Standard paper can cause dangerous triboelectric charging. This happens inside the Faraday cage of the barrier bag. This static buildup destroys sensitive microchips before they leave your facility. Proper ESD integration prevents these invisible failures completely.
Securing a reliable supply chain requires careful vendor evaluation. Procurement teams must scrutinize prospective suppliers across three main categories. Scalability depends heavily on consistent vendor performance.

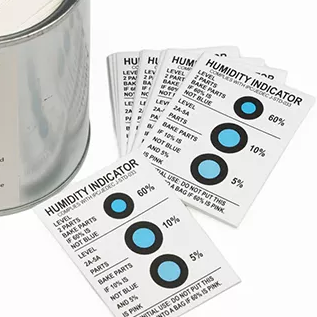

Shelf-Life and Storage Constraints: Indicator cards are highly sensitive to ambient air. A reliable supplier must provide them in airtight, vacuum-sealed cans. Cards have a strict and limited shelf life. It usually ranges from one to two full years. You must keep them perfectly dry before deployment.
Customization vs. Off-the-Shelf: You should assess your true functional requirements carefully. Custom spot-ranges or unique company branding might seem appealing initially. However, you must determine if they add real functional value. Often, they just add unnecessary manufacturing cost and lead time. Standard configurations usually meet most strict audit requirements.
Quality Assurance & Documentation: Clear paper trails matter for global compliance. Ensure the supplier provides accurate Certificates of Analysis (COA) per batch. They must supply valid compliance declarations for REACH, RoHS, and JEDEC. These critical documents support complex internal audits. They also satisfy strict customer quality inquiries rapidly.
A common mistake involves ignoring batch-to-batch consistency. Always test sample batches thoroughly. Check their baseline color-change accuracy before placing massive bulk orders.
Integrating the correct visual indicator shifts packaging safety completely. It moves your operation from assumed protection to verifiable proof. The triad approach guarantees internal microclimate stability during long transits. It protects highly sensitive goods from invisible, costly degradation.
Prioritize modern cobalt-free options moving forward. They ensure strict regulatory compliance while protecting your workforce. Strictly align your spot-configurations with specific moisture tolerance standards. Do not over-specify or under-specify your tracking limits.
Consult with an experienced packaging engineer today. Audit your current barrier bag, desiccant, and indicator triad carefully. Request fully compliant samples for rigorous internal testing. You can secure your vulnerable supply chain immediately.
A: Most industrial-grade cards are accurate to within ±5% relative humidity at 24°C (75°F). Accuracy can fluctuate slightly under extreme temperature shifts. You should always reference the manufacturer's technical data sheet for specific environmental tolerances during transit.
A: Reversible cards can technically change back if placed in a dry environment, but for strict quality control and liability purposes, they are treated as single-use consumables per shipment. Reusing them compromises the integrity of your audit trail.
A: Unlike the traditional blue-to-pink shift, cobalt-free cards usually transition from brown (dry) to a pale blue/azure (wet). The specific spot where the color is currently transitioning indicates the current relative humidity inside the packaging.
A: HICs are highly sensitive to ambient humidity. If the ambient factory environment is humid, exposed cards will begin reacting within minutes. They must be sealed inside the moisture barrier bag with desiccants immediately after extraction to ensure accurate readings.
